When two quotes are not pricing the same basket
Two baskets can match the same drawing and behave differently in the washer. AUKE reviews the load, supports, tooling and inspection so a purchasing manager can compare the real cost before missing work returns as rework or a production delay.
If two suppliers have allowed for the same material, loaded duty, tooling, sample test and production inspection, there is nothing wrong with choosing the cheaper one. Sometimes the saving is straightforward. A supplier may already own suitable tooling, or its production route may need less welding.
Problems start when the two prices cover different work. Outside dimensions and a material grade tell us surprisingly little about how a basket will sit on the washer rails after the parts go in. They also do not tell purchasing what will be measured on the next batch.
A useful comparison starts here: both suppliers should be pricing the same loaded result and an agreed way to check it.
A cleaning basket has several jobs to do at once. The basket must retain the smallest part, let the cleaning liquid reach the required surfaces, drain in the operating position and stay properly seated in the machine. It can meet its overall length and width and still fail the last requirement.
Take a sample that sits flat when it is empty. Load the specified parts and one corner lifts from the washer rail. The basket now rocks, although the dimensions on the inspection report still look correct.
That detail changes the quotation. The frame may be bending between two supports, or a formed corner may already be too high because the weld pulled it out of position. More steel or a larger wire diameter can help with the first problem. It will not repair the second.

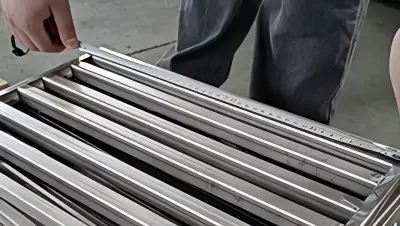

We start with the part layout, total loaded weight, washer rail positions and failure photographs. Then we measure the diagonals and the height of each contact point. We compare one set of readings with the basket empty against another taken on the actual supports under the agreed load. This separates the visible symptom from the likely root cause.
If the empty basket is flat and the corner rises only after loading, we look at the unsupported span and where the weight sits. We compare two options: adding a local frame member or changing the support position. The tradeoff is extra basket weight versus a change at the washer interface; making every wire heavier may be unnecessary.
If the corner is high before loading, the investigation moves to the formed bends, joint gaps, tack positions and weld sequence. We measure again after cooling. Weld shrinkage can move a contact point that appeared correct while it was held.
The proposed change should come with a before-and-after measurement. Otherwise, the buyer is paying for a design change without knowing whether it addresses the fault.
When the frame is bending, the quotation should identify the affected span and the reinforcement proposed there. A broad description such as "heavy duty construction" does not show whether the extra material is in the place that needs it.
Weld movement produces a different cost. A welding fixture may be a one-time charge. Joint preparation, welding and dimensional inspection after cooling are repeated for every order. Separating those amounts makes the unit price easier to understand and prevents tooling from being paid for again by mistake.
Material is decided from the cleaning process, not from habit. We need the chemical, concentration, pH, impurities, temperature, exposure time and surface requirement before comparing stainless grades. When two quotes name different grades, the process condition behind each choice should be clear.
The manufacturing route matters too. Cutting and punching place holes in a perforated sheet basket before forming; holes close to a bend can affect the finished shape. With a wire basket, cut length, joint access and weld sequence affect where the frame settles. In both cases, the tolerance and inspection method belong on the dimensions that retain the parts and locate the basket in the washer.
For this rocking basket, sample approval would include the height of each washer contact point and a fit check at the specified load. If drainage or part movement is also under review, the test has to use the same part arrangement and basket orientation each time.
After approval, we record the drawing revision, material grade, critical dimensions, fixture identification and inspection method together. The operator making a later batch should not have to guess why the sample worked.
If production misses the recorded dimension or fit check, we record the deviation. We trace it to forming, welding or fixture use, make the correction and verify the affected dimension again before production resumes. This is the link between an approved sample and a repeat order that behaves the same way.
The quotation inputs should name the drawing revision, quantity, loaded weight, washer supports, material and basket construction. A usable price also separates tooling from recurring production work and states which sample tests and production dimensions are included.
The quote lists material and size but leaves out the loaded duty, support locations, tooling amount or production checks.
The loaded condition is defined, tooling is separate, and both sample and production measurements are named.
When information is missing, we leave it open for confirmation instead of burying an estimate in the price. Another supplier may then offer a lower Custom Cleaning Basket Cost for the same work. That is a fair commercial choice. If the work is not the same, neither price is ready for a decision.
No. It deserves full consideration when the loaded duty, material, tooling, sample test and production inspection are equivalent. Delivery and commercial terms can then be compared separately.
It may reduce frame deflection under load. It will not correct a formed bend in the wrong position or a corner moved by weld shrinkage.
The supplier should be able to name the joint or contact point held by the fixture and the measurement used after welding. Without that link, the charge needs more explanation.
A drawing and one clear problem photograph are enough for an initial discussion. We can then confirm the part layout, loaded weight, washer supports, cleaning conditions and expected quantity with you.
Send us the drawing and a photograph of the current fit, loading, drainage or part-retention problem. We will identify the measurements needed to understand it.
You will receive a clear account of what belongs in the quotation, including material, forming, welding, tooling, sample testing and production inspection. You can use the same basis when reviewing every supplier's price.
