A manufacturing engineer may first see the problem at unloading: polished faces carry fresh rub lines, thin edges are nicked, or one side of a component is still oily. When the pattern follows the loading position, cleaning basket part separation deserves attention before the washer settings are changed.
The basket must hold every part through loading, transfer, washing, lift-out and unloading. It also has to leave enough open space for cleaning fluid to reach the contaminated surfaces. A restraint that stops contact but masks the surface has only exchanged one defect for another.
THE USEFUL STARTING POINT
Do not begin by counting dividers. Begin with the damaged surface, the direction of the mark and the point in the cycle where the part can gain momentum.
Contact marks are evidence, although they are not proof on their own. Their shape and location narrow the likely movement. That gives the engineer a more useful starting point than adding a uniform divider pattern to every basket position.
The part may be sliding against its neighbor or against one support. Look for clearance in the same direction as the mark and for a low restraint that sits below the part's center of mass.
A narrow impact mark often points to tipping or bouncing during transfer. The important question is which feature arrests that motion and whether the lid allows the part to lift.
A clean boundary around an unwashed patch may show where another part or a support blocked fluid access. Reducing the support spacing at that location could make the result worse.
Record the affected parts per batch, photograph each mark in its loading orientation, and note whether the defect follows one basket position. This turns a vague cleaning complaint into a movement map that AUKE can work from.

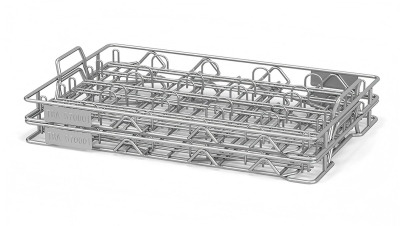

Individual supports control orientation while the open wire structure keeps liquid paths around the components.
An industrial parts washing basket contributes to the process in two ways. It controls where the components sit, and it determines which surfaces remain open to spray, immersion flow or ultrasonic action. Both functions have to survive the complete cycle.
More steel inside the basket gives more restraint, but it also creates more contact area. A wide plate can hide a sealing face. Closely spaced supports can slow drainage. A divider placed across the contaminated zone can leave a repeatable shadow even though the parts no longer collide.
A practical tradeoff
The best restraint is usually the least structure that limits damaging motion. Its contact points should sit on surfaces that may be touched, while critical bores, polished faces and contaminated recesses remain exposed.
Different parts do not need the same solution. The geometry, allowed contact zones, center of mass and loading method decide whether a simple divider is enough or whether the basket needs a shaped position.
01 | PARALLEL DIVIDERS
Suitable when parts have a stable base and only need lateral separation. Divider height must prevent leaning at the top, not merely separate the lower edges.
02 | SHAPED WIRE SUPPORTS
Useful for curved or asymmetric parts that roll between straight dividers. The wires follow permitted contact zones and leave most of the surface open.
03 | INDIVIDUAL PART POSITIONS
Appropriate when small components can migrate through a shared compartment. Each defined position retains one part while leaving an open route for cleaning fluid and loosened debris.
04 | TOP RETAINER OR LID
Needed when parts can lift, tip or leave their supports during vertical movement. The clearance above the loaded part must stop escape without clamping it against a sensitive face.
Every fixture touches the part somewhere. The design task is to move that contact to an allowed surface, spread the load where necessary and prevent metal-to-metal movement at the protected surface.
A coating or sleeve may soften a permitted support point, but it cannot correct positioning geometry that lets the part strike its neighbor.
Cleaning basket part spacing cannot be taken from nominal part width alone. Each position has to account for the largest permitted part, loading clearance and the small amount of movement that remains acceptable.
Clear opening: enough for repeatable loading, but not enough for two parts to meet when both move toward the divider.
Support height: high enough to resist tipping in the damaging direction, especially for a tall part with a raised center of mass.
Top clearance: limited by a retainer when lifting or oscillation can raise the part out of its location.
Open flow area: preserved around the soil-bearing surface and below recesses that need to drain after lift-out.
Wire diameter, divider pitch and weld position also interact. Welding can pull a divider inward or leave adjacent part positions with different clear spacing. A sharp wire end or weld projection inside the loading envelope creates a new damage point even when the nominal pitch is correct.
We map the marks onto the part drawing, identify the surfaces that may be touched and trace the direction in which the component can slide, roll, tip or lift. Our custom wire mesh cleaning baskets can use dividers, shaped-wire supports, individual positions or retainers, so we compare those options against the washer working envelope and the required parts per basket.
The sketch states the part orientation, position pitch, support points, loading direction and protected surfaces. It also shows where the basket sits on the machine support. This keeps cleaning basket part separation tied to the real handling path instead of an isolated basket drawing.
A useful first exchange
Send the part drawing, two photographs showing the damage in its loaded orientation, parts per basket and the washer working envelope. We will map the likely movement and define which positioning details need a loaded trial.
A loose fit on a bench does not prove the basket in production. The sample needs the actual or worst-case part size, the intended quantity and the same loading orientation. We run the loaded basket through manual handling, machine transfer, washing, lift-out and unloading because contact may occur outside the cleaning chamber.
We photograph the loaded positions before and after the cycle. We record any part that has rotated or climbed, then compare those positions with the original damage locations. If cleaning access is reduced, we change the support width or contact point instead of accepting a tidy fixture that hides a wash problem.
Once the loaded geometry performs as intended, the critical dimensions are the clear spacing between supports, divider position, support height and any lid clearance that limits lift.
AUKE measures those dimensions after welding, inspects wire ends and projections inside the part envelope, and records the accepted values for later production orders.
This sequence separates three causes that can look alike: the positioning geometry was wrong, welding changed the clear spacing, or the machine movement exceeded the assumed condition. The correction can then target the actual cause instead of increasing every divider and repeating the same production delay.
No. Stable parts may only need dividers that stop lateral contact. Individual shaped positions are more useful when a part rolls, tips, nests with its neighbor or has only a small permitted support area.
Only when it limits the damaging motion without blocking loading or cleaning access. Tighter support spacing can increase contact, trap debris or prevent fluid from reaching the surface that needs cleaning.
Yes, whenever possible. The trial should include the largest and smallest allowed part conditions, the intended load count and the normal loading orientation. That exposes clearance or support problems that an empty basket cannot show.
The useful inputs are a part drawing or sample, contact-sensitive surfaces, parts per basket, allowed orientation, washer working envelope, machine support points and photographs of current damage.
Define the movement before the metal
Share the part drawing, damage photographs, load quantity and washer support details. We will identify the likely contact path, map permitted support zones and propose the positioning features that should be proven in a loaded trial.
