Introduction: The Hidden Variable in Perforated Basket Design

When procurement engineers and process designers specify a stainless steel perforated basket, they typically focus on dimensions, material grade, and load capacity. But there is one design parameter that silently determines whether a basket performs flawlessly or creates costly bottlenecks: open area.

Open area—the percentage of a perforated sheet that consists of holes rather than solid metal—directly governs how quickly fluid drains, how effectively ultrasonic energy transmits, how uniformly heat distributes, and how much weight the basket can safely carry. Get it wrong, and you may face slow cycle times, incomplete cleaning, part damage, or premature basket failure.

In this guide, we break down exactly how open area affects real-world industrial perforated basket performance, walk through the trade-offs you need to understand, and provide a practical framework for selecting the right open area for your specific application.

1. What Is Open Area? Definition and Simple Calculation

Open area (also called open area ratio or percentage open area) is the proportion of open space within a perforated metal sheet, expressed as a percentage of the total sheet area. In simple terms: if 40% of a sheet’s surface is holes and 60% is solid metal, the open area is 40%.

1.1 The Standard Formula

For round holes arranged in a standard 60° staggered pattern—the most common configuration in industrial perforated baskets—the open area is calculated as:
Open Area (%) = (D⊃2; × 90.69) / P⊃2;

• D = Hole diameter (mm or inch)

• P = Pitch, i.e., center-to-center distance between adjacent holes (same unit as D)

For example, a perforated sheet with 5 mm holes at an 8 mm pitch yields approximately 35.4% open area.
For straight-line (non-staggered) patterns, the constant changes to 78.5, resulting in a lower open area for the same hole size and pitch.



2. Why Open Area Is the Performance Multiplier in Industrial Applications

In a perforated basket, open area is not merely a geometric curiosity—it is the primary performance variable that controls three critical functions simultaneously:

• Fluid and Gas Flow: Higher open area reduces resistance to liquid and air passage, speeds up drainage and drying cycles.

• Energy Transmission: Open holes allow ultrasonic wave and heat penetration; low open area will block energy transfer.

• Particulate Shedding: Proper open area helps residue flow out and avoids contamination buildup inside baskets.

3. Open Area Performance Across Key Application Scenarios

3.1 Ultrasonic Cleaning Baskets | Recommended open area: 40–60%

Ultrasonic cleaning relies on high-frequency sound waves generating microscopic cavitation bubbles. Low open area blocks acoustic energy, while excessively high open area weakens structural rigidity under long-time vibration. Floor panels adopt higher open area, and frame edges use dense perforation for reinforcement.

3.2 Industrial Parts Washing and Degreasing | Recommended open area: 35–55%

Sufficient open area eliminates spray shadow zones, accelerates gravity drainage, and reduces cleaning liquid carryover between working stations, greatly improving continuous automated line throughput.

3.3 Food and Beverage Processing | Recommended open area: 30–50%

Balance product containment and self-draining performance. Electropolished surface finish is mandatory to avoid food residue trapping and bacterial reproduction.

3.4 Pharmaceutical and Chemical Processing | Recommended open area: 25–45%

Uniform hole distribution matters more than maximum open area. Laser-cut perforation delivers stable aperture tolerance for cleanroom vial washing and drying applications.

3.5 Heat Treatment and High-Temperature Applications | Recommended open area: 30–55%

High open area improves radiant heat uniformity. But material strength drops sharply under high temperature. For furnace working conditions above 600°C, thicker plate and reinforced frame are required.

4. The Open Area vs. Structural Strength Trade-off

Every perforation removes load-bearing material. Load capacity does not decrease linearly with open area growth. Higher open area makes the metal ligaments between holes bear more concentrated stress.

Engineers can offset strength loss caused by high open area through three methods:

• Increase raw material plate thickness

• Optimize hole pitch layout to distribute stress evenly

• Add folded edges, cross reinforcing ribs and welded support bars

5. Hole Pattern, Pitch, and Their Effect on Open Area

Open area is not determined by hole diameter alone. Arrangement directly changes the final perforation ratio:

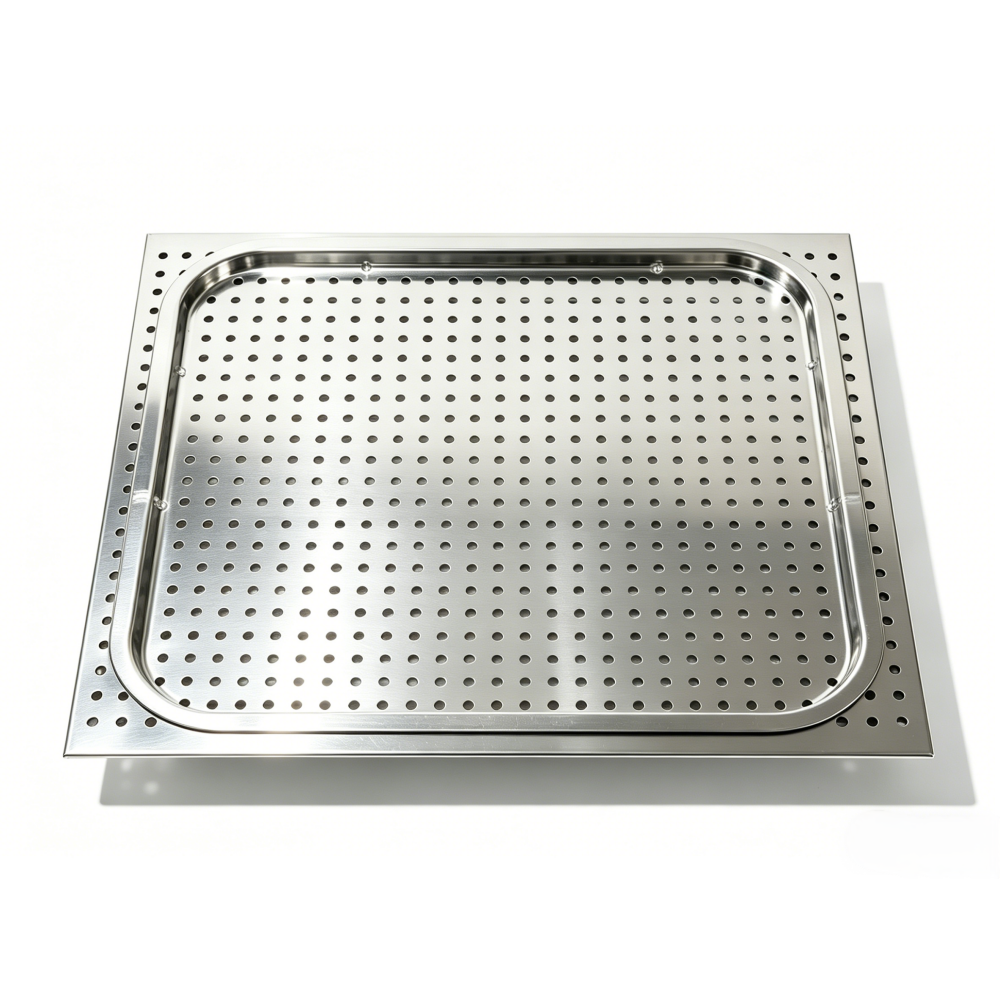

• 60° Staggered (Triangular Pitch): Industry mainstream, maximum open area under same hole size

• 45° Staggered: Medium open area, better tear resistance under single-direction load

• Straight Line Square Pitch: Lowest open area, convenient positioning matching automation fixtures

• Slotted & Custom Laser Patterns: Achieve ultra-high open area for special screening & filtering demands



6. How to Select the Right Open Area: A Decision Framework

1. Step1 Define primary function: Cleaning / drying / heat transfer or heavy load storage

2. Step2 Characterize working medium: Water, solvent, hot air or granular materials

3. Step3 Calculate static & dynamic maximum load: Set upper limit of open area based on structural safety

4. Step4 Evaluate environment: Working temperature, corrosive chemical, cleanroom requirements

5. Step5 Prototype verification: Test multiple open area options for critical mass-production processes

7. Stainless Steel Grade Selection and Open Area Matching

Material yield strength and corrosion resistance directly restrict your maximum feasible open area:

• AISI 304: General industrial use, suitable open area up to 50% under medium load

• AISI 316L: Anti-chloride corrosion for marine, pharmaceutical applications; slightly lower mechanical strength

• 310S: Specialized material for high-temperature furnace baskets

Electropolishing treatment is highly recommended when open area exceeds 40%, to smooth hole edges and reduce particle adhesion.

Conclusion: Open Area Is a Design Decision, Not an Afterthought

Open area is the single most influential design parameter in a stainless steel perforated basket. Reasonable matching of open area, plate thickness, hole pattern and material grade creates balanced performance: faster cleaning cycles, stable structural performance and lower long-term operation cost.
